Materials
Urethane, Rubber, Sponge, Felt
Plates (Urethane / Rubber / Sponge / Felt)
Plates / PUR / abrasion resistant, temperature resistant / A68, A70, A90 (Seznam čísel dílů: stránka 23)

Podmínky filtrování

Stock
Zobrazit pouze skladové položky

Grade, Type

Heat Resistant Urethane

Abrasion Resistant Urethane

Abrasion Resistant Urethane
Vulkollan

With or w/o Adhesive

Thickness T(mm)

Width A(mm)

[10–500/1mm jednotek]

Length B(mm)

[10–500/1mm jednotek]

Hardness (Shore, Asker, Penetration)

Specifications

Hole Machining

Counterbored Hole Nominal Dia. [Z]

F(mm)

[5–491/0.5mm jednotek]

G(mm)

[5–495/0.5mm jednotek]

Through Hole Nominal Dia. [N]

CAD

MISUMI

Plates / PUR / abrasion resistant, temperature resistant / A68, A70, A90 (Seznam čísel dílů: stránka 23)

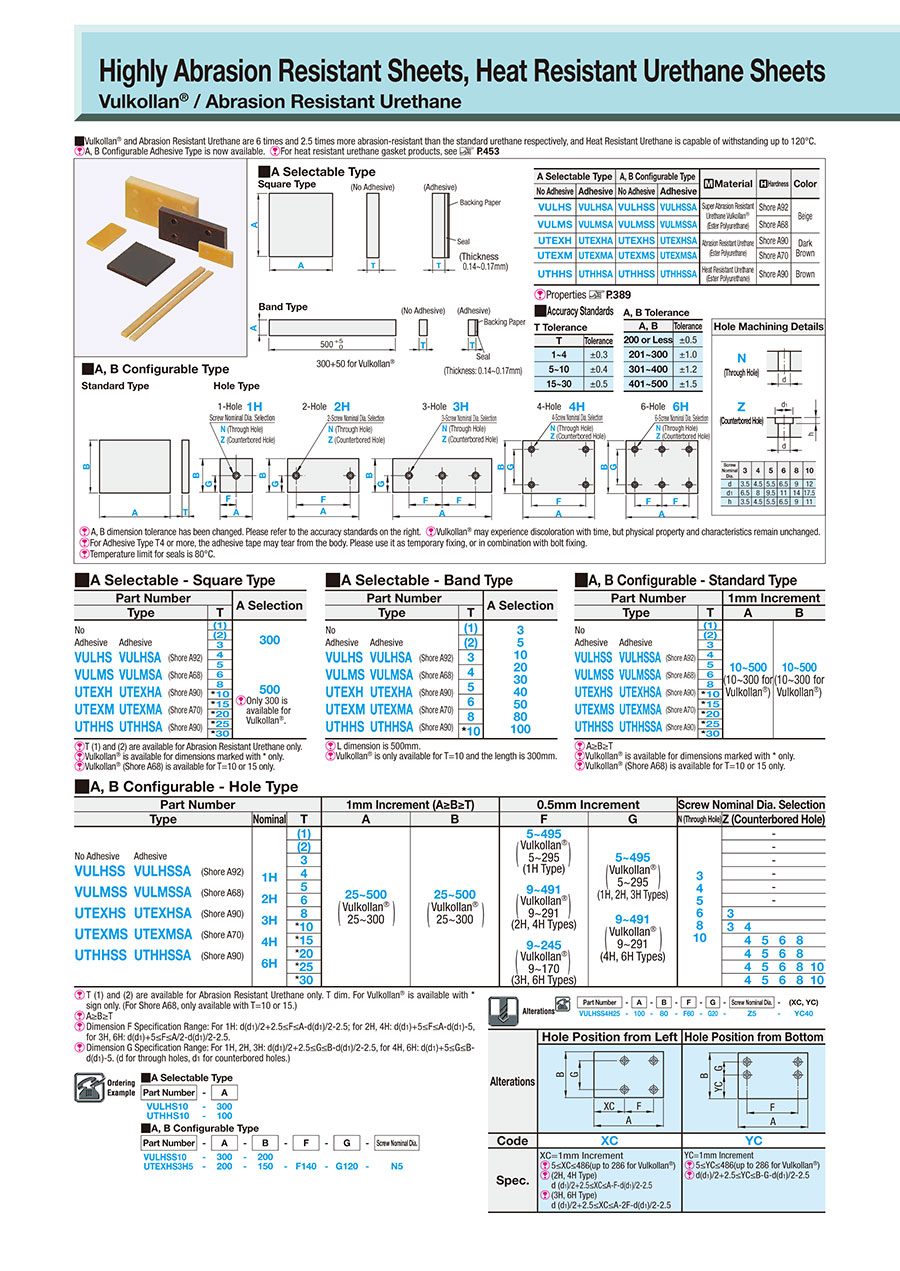

KatalogStr. 2-417

Číslo dílu:

Nebyly nalezeny žádné nevyřízené. 1,324 návrhy.

Obrysový výkres a tabulka specifikací
Seznam čísel dílů
Podrobné údaje
Katalog

Obrysový výkres a tabulka specifikací

Dimensional Drawing

■A Selectable Type
Square Type

Band Type

(Thickness
0.14 to 0.17 mm)

For Vulkollan, 300 +5
0

(Thickness 0.14 to 0.17 mm)

High Abrasion Resistant Urethane/Vulkollan/Heat Resistant Urethane Sheet - A, B Configurable, Dimensional Drawing

■ A, B Configurable
Standard

Hole Type

-1 Hole- 1H

-2 Holes- 2H

-3 Holes- 3H

-4 Holes- 4H

-6 Holes- 6H

[ ! ]Vulkollan may experience discoloration with time, but physical properties and characteristics remain unchanged.
[!]The adhesive tape may tear from the body. Please use it as temporary fixing, or in combination with bolt fixing.
[ ! ]Temperature limit for seals is 80°C.

■ Accuracy Standards

T Tolerance

T	Tolerance
1 to 4	±0.3
5 to 10	±0.4
15 to 30	±0.5

A, B Tolerance

A·B	Tolerance
200 or Less	±0.5
201 to 300	±1.0
301 to 400	±1.2
401 to 500	±1.5

Hole Machining Details

High Abrasion Resistant Urethane/Vulkollan/Heat Resistant Urethane Sheet - A, B Configurable, Example

N
(Through Hole)

Z
(Counterbored Hole)

Screw Nominal Dia.	3	4	5	6	8	10
d	3.5	4.5	5.5	6.5	9	12
d₁	6.5	8	9.5	11	14	17.5
h	3.5	4.5	5.5	6.5	9	11

Product Specifications

A Selectable Type		A, B Configurable		[M] Material	[H] Hardness	Color
No Adhesive	Adhesive	No Adhesive	Adhesive	[M] Material	[H] Hardness	Color
VULHS	VULHSA	VULHSS	VULHSSA	Super Abrasion Resistant Urethane Vulkollan (Ester Polyurethane)	Shore A92	Beige
VULMS	VULMSA	VULMSS	VULMSSA		Shore A68	Beige
UTEXH	UTEXHA	UTEXHS	UTEXHSA	Abrasion Resistant Urethane (Ester Polyurethane)	Shore A90	Dark Brown
UTEXM	UTEXMA	UTEXMS	UTEXMSA	Abrasion Resistant Urethane (Ester Polyurethane)	Shore A70	Dark Brown
UTHHS	UTHHSA	UTHHSS	UTHHSSA	Heat Resistant Urethane (Ester Polyurethane)	Shore A90	Brown

Item	Unit	Urethane
Item	Unit	Vulkollan®		Abrasion Resistance		Heat Resistance
Hardness	Shore A	92	68	90	70	90
Specific Gravity	－	1.26		1.2	1.2	1.13
Tensile Strength	MPa	46.5	60	44.6	31.3	44.6
Elongation	％	690	650	530	650	530
Specificb Volume Resistivity	（Ω・cm）	－		－		－
Heat Resistance	℃	80（短時間120度）		70		120
Low Temp. Resistance	℃	-20		-20		-20

Specification Table

● A Selectable Type

Part Number	—	A
VULHS10 UTHHS10	— —	300 100

● A, B Configurable

Part Number	—	A	—	B	—	F	—	G	—	Screw Nominal Dia.
VULHSS10 UTEXHS3H5	— —	300 200	— —	200 150	—	F140	—	G120	—	N5

■A Selectable - Square

Part Number				A Selection
Type			T
No seal VULHS VULMS UTEXH UTEXM UTHHS	With seal VULHSA VULMSA UTEXHA UTEXMA UTHHSA	(Shore A92) (Shore A68) (Shore A90) (Shore A70) (Shore A90)	(1)	300 500 [ ! ]Only 300 is available for Vulkollan
			(2)
			3
			4
			5
			6
			8
			* 10
			* 15
			* 20
			* 25
			* 30

[ ! ]T (1) and (2) are available for Abrasion Resistant Urethane only.
[ ! ]Vulkollan is available for dimensions marked with * only.
[ ! ]Vulkollan (Shore A68) is available for T = 10 or 15 only.

■A Selectable - Band

Part Number				A Selection
Type			T
No seal VULHS VULMS UTEXH UTEXM UTHHS	With seal VULHSA VULMSA UTEXHA UTEXMA UTHHSA	(Shore A92) (Shore A68) (Shore A90) (Shore A70) (Shore A90)	(1)	3 5 10 20 30 40 50 80 100
			(2)
			3
			4
			5
			6
			8
			* 10

[ ! ]L dimension is 500 mm.
[ ! ]Vulkollan is only available for T = 10 and the length is 300 mm.

■A, B Configurable - Standard Type

Part Number				1 mm Increments
Type			T	A	B
No Adhesive VULHSS VULMSS UTEXHS UTEXMS UTHHSS	With seal VULHSSA VULMSSA UTEXHSA UTEXMSA UTHHSSA	(Shore A92) (Shore A68) (Shore A90) (Shore A70) (Shore A90)	(1)	10 to 500 (10 to 300 for Vulkollan )	10 to 500 (10 to 300 for Vulkollan )
			(2)
			3
			4
			5
			6
			8
			* 10
			* 15
			* 20
			* 25
			* 30

[ ! ]A ≥ B ≥ T
[ ! ]Vulkollan is available for dimensions marked with * only.
[ ! ]Vulkollan (Shore A68) is available for T = 10 or 15 only.

■A, B Configurable - Hole Type

Part Number					1 mm Increments (A ≥ B ≥ T)		0.5 mm Increments		Screw Nominal Dia. Selection
Type			Nominal	T	A	B	F	G	N (Through Hole)	Z (Counterbored Hole)
No Adhesive VULHSS VULMSS UTEXHS UTEXMS UTHHSS	Adhesive VULHSSA VULMSSA UTEXHSA UTEXMSA UTHHSSA	(Shore A92) (Shore A68) (Shore A90) (Shore A70) (Shore A90)	1H 2H 3H 4H 6H	(1)	25 to 500 (25 to 300 for Vulkollan )	25 to 500 (25 to 300 for Vulkollan )	5 to 495 (5 to 295 for Vulkollan ) (1H Type) 9 to 491 (9 to 291 for Vulkollan ) (2H, 4H Type) 9 to 245 (9 to 170 for Vulkollan ) (3H, 6H Type)	5 to 495 (5 to 295 for Vulkollan ) (1H, 2H, 3H Type) 9 to 491 (9 to 291 for Vulkollan ) (4H, 6H Type)	3 4 5 6 8 10	—
				(2)						—
				3						—
				4						—
				5						—
				6						—
				8						3
				* 10						3	4
				* 15							4	5	6	8
				* 20							4	5	6	8
				* 25							4	5	6	8	10
				* 30							4	5	6	8	10

[!]T (1) and (2) are available for Abrasion Resistant Urethane only. Only T dimensions marked with * are available for Vulkollan. (For Shore A68, only available with T = 10 or 15.)
[ ! ]A ≥ B ≥ T
[!]Dimension F Specification Range – 1H type selection: d (d₁)/2 + 2.5 ≤ F ≤ A − d (d₁)/2−2.5, when selecting 2H/4H type: d (d₁) + 5 ≤ F ≤ A − d (d₁)−5, when selecting 3H/6H type: d (d₁) + 5 ≤ F ≤ A/2−d (d₁)/2−2.5 is required.
[!]Dimension G Specification Range – 1H/2H/3H type selection: d (d₁)/2 + 2.5 ≤ G ≤ B - d (d₁)/2 - 2.5, when selecting 4H/6H type: d (d₁) + 5 ≤ G ≤ B−d (d₁)−5 is required. (d for through holes, d₁ for counterbored holes.)

Alterations

Alterations Code	Alteration Details		Applicable Conditions	Alteration Examples
XC	Hole Position From Left	XC = 1 mm Increments	[ ! ]5 ≤ XC ≤ 486 (Up to 286 for Vulkollan) " ! " (2H, 4H Type): d (d₁)/2 + 2.5 ≤ XC ≤ A-F-d (d₁)/2-2.5 " ! " (3H, 6H Type): d (d₁)/2 + 2.5 ≤ XC ≤ A-2F-d (d₁)/2-2.5	UTEXHS4H8-200-150-F120-G100-N5-XC55
YC	Hole Position From Bottom	YC = 1 mm Increments	[ ! ]5 ≤ YC ≤ 486 (Up to 286 for Vulkollan) [ ! ] d (d₁ )/2 + 2.5 ≤ YC ≤ B-G-d (d₁)/2-2.5	UTEXHS4H25-100-80-F60-G20-Z5-YC40

Seznam čísel dílů

Počet položek

Předchozí

...

Číslo dílu

VULMSSA6H15-[25-300/1]-[25-300/1]-F[9-170/0.5]-G[9-291/0.5]-N[3,4,5,6,8,10]

VULMSSA6H15-[25-300/1]-[25-300/1]-F[9-170/0.5]-G[9-291/0.5]-Z[4,5,6,8]

VULMSSA10-[10-300/1]-[10-300/1]

VULMSSA15-[10-300/1]-[10-300/1]

Grade, Type

With or w/o Adhesive

Thickness T

(mm)

Width A

(mm)

Length B

(mm)

Hardness (Shore, Asker, Penetration)

Specifications

Hole Machining

Counterbored Hole Nominal Dia. [Z]

(mm)

Through Hole Nominal Dia. [N]

RoHS?

Minimální objednací množství

[Abrasion Resistant Urethane] Vulkollan

Adhesive

25 ～ 300

Shore A68

With Machined Hole Type

6H (Six Holes)

9 ～ 170

9 ～ 291

3 ～ 10

1 kusů

[Abrasion Resistant Urethane] Vulkollan

Adhesive

25 ～ 300

Shore A68

With Machined Hole Type

6H (Six Holes)

4 ～ 8

9 ～ 170

9 ～ 291

1 kusů

[Abrasion Resistant Urethane] Vulkollan

Adhesive

10 ～ 300

Shore A68

Standard Type

No Drilling Alteration

1 kusů

[Abrasion Resistant Urethane] Vulkollan

Adhesive

10 ～ 300

Shore A68

Standard Type

No Drilling Alteration

1 kusů

Jednotková cena (bez DPH)(Jednotková cena včetně DPH)	Standardní datum odeslání

- ( - )	7 pracovních dnů
- ( - )	7 pracovních dnů
- ( - )	7 pracovních dnů
- ( - )	7 pracovních dnů

Předchozí

...

Základní informace

Technické údaje

Náčrt a specifikace

General Information - Panels (polyurethane rubber, rubber, foam, felt)

Selection details of panels (polyurethane rubber, rubber, foam, felt)

- Material: polyurethane rubber (PU/PUR), heat-resistant polyurethane rubber, low-impact polyurethane rubber, abrasion-resistant polyurethane rubber, antistatic polyurethane, nitrile (NBR), chloroprene rubber (CR), polyethylene (EPDM), silicone (SI), fluorine (FPM), butyl rubber (IIR), natural rubber (NR), hard rubber, special synthetic rubber, polyurethane foam, head-insulating foam, polyethylene foam, low-rebound foam

- Thickness (mm): 0.5 to 50

- Width (mm): 3 to 500

- Length (mm): 10 to 2000

Description/Basics

Foam plates and rubber plates are provided for damping or for sound proofing. MISUMI offers these in various Shore hardening for a wide variety of tasks. Due to the variety of materials, different resistances to environmental influences are possible depending on the application. The foam plates reduce sound in machines and can reduce the sound emissions of a system. For more information on foam characteristics, follow this link.
Rubber plates or foam plates are also suitable in conveyor systems to absorb components to be transported at a dampened level or to protect them from damage as a lateral guide when the components bump into each other. Hard rubber panels or low-impact rubber or foam panels reduce the impact energy of the components. These minimize and lower the vibrations in an application.
In addition, MISUMI offers highly abrasion-resistant polyurethane (Vulkollan), which has an abrasion resistance that is six times higher than with conventional polyurethane.
Ceramic polyurethane plates contain ceramic particles. After machining, these can have a smooth surface despite low Shore hardness.
The polyurethane rubber plates are also available antistatically. The specific resistance of antistatic polyurethane plates prevents static charging. This prevents any damage to electronic components.
For applications with higher temperatures, MISUMI offers heat-resistant polyurethane rubber, which can withstand a temperature range of up to approx. ~120°C (see the product specifications for exact information).
MISUMI also offers low-friction and anti-friction rubber plates. Low-friction rubber plates are often used in the gentle component guide for belt conveyors and roller conveyors.
Felt plates have the property of absorbing or dispensing oil and other liquids via the capillary effect. This property can be used to remove, for example, excess oil on a belt conveyor.

In addition, MISUMI offers rubber plates and foam plates that are self-adhesive for simplified assembly. Furthermore, you will find double-adhesive tape for attaching rubber plates and foam plates.

Additional properties on foam panels and rubber plates can be found in the Properties PDF.

MISUMI also offers these products in a round shape as discs and sleeves made of rubber, natural rubber, foam and felt.
