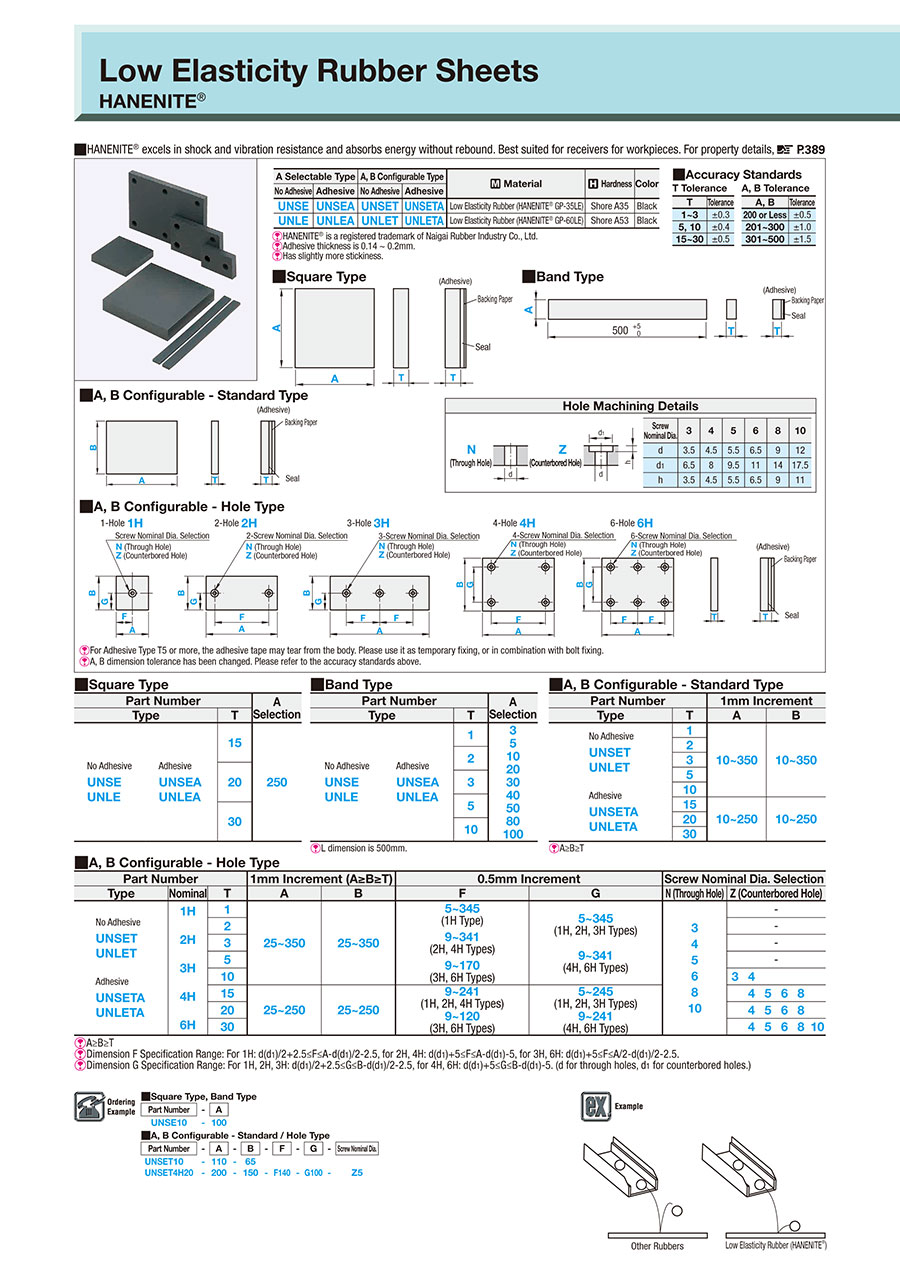

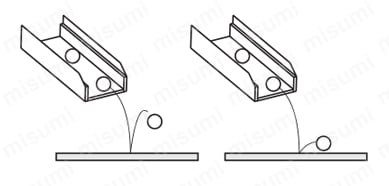

Plates / HANENITE® / low elasticity / A33, A49 / through hole / adhesive layer(Seznam čísel dílů: stránka 6)
Pozor
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Číslo dílu:
návrhy.Obrysový výkres a tabulka specifikací
Dimensional Drawing
- Standard type -
T Tolerance
| T | Tolerance |
| 1 to 3 | ±0.3 |
| 5·10 | ±0.4 |
| 15 to 30 | ±0.5 |
A, B Tolerance
| A·B | Tolerance |
| 200 or Less | ±0.5 |
| 201 to 300 | ±1.0 |
| 301 to 500 | ±1.5 |
- Hole Type -
[!]The adhesive tape may tear from the body. Please use it as temporary fixing, or in combination with bolt fixing.
| Hole Machining Details | |||||||||||||||||||||||||||||
 N (Through Hole) Z (Counterbored Hole) |
| ||||||||||||||||||||||||||||
Product Specifications
| A Selectable Type | A, B Configurable | [M] Material | [H] Hardness | Color | ||
| No Adhesive | Adhesive | No Adhesive | Adhesive | |||
| UNSE | UNSEA | UNSET | UNSETA | Low Elasticity Rubber (HANENITE GP−35LE) | A33 | Black |
| UNLE | UNLEA | UNLET | UNLETA | Low Elasticity Rubber (HANENITE GP−60LE) | A49 | Black |
[ ! ]Adhesive thickness is 0.14 to 0.2 mm.
[ ! ]Has slightly more stickiness.
Item | Unit | Low Elasticity Rubber | |
| (HANENITE®) | |||
| Hardness | Shore A | 49 | 33 |
| Specific Gravity | - | 1.27 | 1.26 |
| Tensile Strength* | Mpa | 8.5 | 11.9 |
| Elongation | % | 630 | 790 |
| Volume Resistivity | (Ω·cm) | - | - |
| Maximum Operating Temperature | °C | 60 | 60 |
| Temperature of Continuous Use | °C | 30 | 30 |
| Low Temp. Resistance | °C | 19 | 18 |
* The characteristic values of tensile strength and elongation are tested based on the JIS standard K6251.
Specification Table
| Part Number | — | A |
| UNSE10 | — | 100 |
| Part Number | — | A | — | B | — | F | — | G | — | Screw Nominal Dia. |
| UNSET10 | — | 110 | — | 65 | ||||||
| UNSET4H20 | — | 200 | — | 150 | — | F140 | — | G100 | — | Z5 |
| Part Number | A Selection | ||
| Type | T | ||
| No Adhesive UNSE UNLE | Adhesive UNSEA UNLEA | 15 | 250 |
| 20 | |||
| 30 | |||
| Part Number | A Selection | ||
| Type | T | ||
| No Adhesive UNSE UNLE | Adhesive UNSEA UNLEA | 1 | 3 5 10 20 30 40 50 80 100 |
| 2 | |||
| 3 | |||
| 5 | |||
| 10 | |||
■A, B Configurable - Standard Type
| Part Number | 1 mm Increments | ||
| Type | T | A | B |
| No Adhesive UNSET UNLET Adhesive UNSETA UNLETA | 1 | 10 to 350 | 10 to 350 |
| 2 | |||
| 3 | |||
| 5 | |||
| 10 | |||
| 15 | 10 to 250 | 10 to 250 | |
| 20 | |||
| 30 | |||
■A, B Configurable - Hole Type
| Part Number | 1 mm Increments (A ≥ B ≥ T) | 0.5 mm Increments | Screw Nominal Dia. Selection | ||||||||||
| Type | Nominal | T | A | B | F | G | N (Through Hole) | Z (Counterbored Hole) | |||||
| No Adhesive UNSET UNLET Adhesive UNSETA UNLETA | 1H 2H 3H 4H 6H | 1 | 25 to 350 | 25 to 350 | 5 to 345 (1H Type) 9 to 341 (2H, 4H Type) 9 to 170 (3H, 6H Type) | 5 to 345 (1H, 2H, 3H Type) 9 to 341 (4H, 6H Type) | 3 4 5 6 8 10 | — | |||||
| 2 | — | ||||||||||||
| 3 | — | ||||||||||||
| 5 | — | ||||||||||||
| 10 | 3 | 4 | |||||||||||
| 15 | 25 to 250 | 25 to 250 | 9 to 241 (1H, 2H, 4H Type) 9 to 120 (3H, 6H Type) | 5 to 245 (1H, 2H, 3H Type) 9 to 241 (4H, 6H Type) | 4 | 5 | 6 | 8 | |||||
| 20 | 4 | 5 | 6 | 8 | |||||||||
| 30 | 4 | 5 | 6 | 8 | 10 | ||||||||
[!]Dimension F Specification Range – 1H type selection: d (d1)/2 + 2.5 ≤ F ≤ A - d (d1)/2 - 2.5, when selecting 2H/4H Type: d (d1) + 5 ≤ F ≤ A - d (d1) - 5,
When selecting 3H/6H Type: d (d1) + 5 ≤ F ≤ A/2−d (d1)/2−2.5 is required.
[!]Dimension G Specification Range – 1H/2H/3H type selection: d (d1)/2 + 2.5 ≤ G ≤ B - d (d1)/2 - 2.5, when selecting 4H/6H Type: d (d1) + 5 ≤ G ≤ B−d (d1)−5 is required. (d for through holes, d1 for counterbored holes.)
Alterations
| Alterations Code | Alteration Details | Applicable Conditions | Alteration Examples | |
| XC | Hole Position From Left | XC = 1 mm Increments | [ ! ]5 ≤ XC ≤ 336 " ! " (2H, 4H Type): d (d1)/2 + 2.5 ≤ XC ≤ A-F-d (d1)/2-2.5 " ! " (3H, 6H Type): d (d1)/2 + 2.5 ≤ XC ≤ A-2F-d (d1)/2-2.5 | UNSET4H10 -200-150- F120- G100-N5- XC55 |
| YC | Hole Position From Bottom | YC = 1 mm Increments | [ ! ]5 ≤ YC ≤ 336 [ ! ] d (d1 )/2 + 2.5 ≤ YC ≤ B-G-d (d1)/2-2.5 | UNSET4H15 -100-80- F60-G20- Z5-YC40 |
| CCA CCB CCC CCD | Corner Cut | Any corner can be cut. 5 ≤ corner cut ≤ 10 (1 mm Increments) [Ordering Code] (Example) Corners of A and D When cutting with C5 => CCA5-CCD5 | [ ! ]50 ≤ A/B [NG]Applicable to A, B Dimension Configurable Type only [NG]T15, 20, and 30 are not selectable. [NG]A/B dimensions of 501 or higher are not selectable. [NG]Hole Type is not selectable. | UNSET10- 300-200- CCA5-CCC5 |
Seznam čísel dílů
| Číslo dílu |
|---|
Jednotková cena (bez DPH)(Jednotková cena včetně DPH) | Standardní datum odeslání |
|---|
12.13 € ( 14.43 € ) | 5 pracovních dnů |
17.71 € ( 21.07 € ) | 7 pracovních dnů |
23.14 € ( 27.54 € ) | 7 pracovních dnů |
30.12 € ( 35.84 € ) | 7 pracovních dnů |
43.15 € ( 51.35 € ) | 7 pracovních dnů |
51.62 € ( 61.43 € ) | 7 pracovních dnů |
12.65 € ( 15.05 € ) | 7 pracovních dnů |
20.50 € ( 24.39 € ) | 7 pracovních dnů |
27.84 € ( 33.13 € ) | 7 pracovních dnů |
34.30 € ( 40.82 € ) | 7 pracovních dnů |
51.62 € ( 61.43 € ) | 7 pracovních dnů |
74.52 € ( 88.68 € ) | 7 pracovních dnů |
93.87 € ( 111.71 € ) | 7 pracovních dnů |
117.67 € ( 140.03 € ) | 7 pracovních dnů |
144.12 € ( 171.50 € ) | 7 pracovních dnů |
208.89 € ( 248.58 € ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
- ( - ) | 7 pracovních dnů |
Podrobné údaje
Základní informace
Pozor
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Náčrt a specifikace
App. Example
General Information - Panels (polyurethane rubber, rubber, foam, felt)
_-_Sortiment.jpg)
Selection details of panels (polyurethane rubber, rubber, foam, felt)
- Material: polyurethane rubber (PU/PUR), heat-resistant polyurethane rubber, low-impact polyurethane rubber, abrasion-resistant polyurethane rubber, antistatic polyurethane, nitrile (NBR), chloroprene rubber (CR), polyethylene (EPDM), silicone (SI), fluorine (FPM), butyl rubber (IIR), natural rubber (NR), hard rubber, special synthetic rubber, polyurethane foam, head-insulating foam, polyethylene foam, low-rebound foam
- Thickness (mm): 0.5 to 50
- Width (mm): 3 to 500
- Length (mm): 10 to 2000
Description/Basics
Foam plates and rubber plates are provided for damping or for sound proofing. MISUMI offers these in various Shore hardening for a wide variety of tasks. Due to the variety of materials, different resistances to environmental influences are possible depending on the application. The foam plates reduce sound in machines and can reduce the sound emissions of a system. For more information on foam characteristics, follow this link.
Rubber plates or foam plates are also suitable in conveyor systems to absorb components to be transported at a dampened level or to protect them from damage as a lateral guide when the components bump into each other. Hard rubber panels or low-impact rubber or foam panels reduce the impact energy of the components. These minimize and lower the vibrations in an application.
In addition, MISUMI offers highly abrasion-resistant polyurethane (Vulkollan), which has an abrasion resistance that is six times higher than with conventional polyurethane.
Ceramic polyurethane plates contain ceramic particles. After machining, these can have a smooth surface despite low Shore hardness.
The polyurethane rubber plates are also available antistatically. The specific resistance of antistatic polyurethane plates prevents static charging. This prevents any damage to electronic components.
For applications with higher temperatures, MISUMI offers heat-resistant polyurethane rubber, which can withstand a temperature range of up to approx. ~120°C (see the product specifications for exact information).
MISUMI also offers low-friction and anti-friction rubber plates. Low-friction rubber plates are often used in the gentle component guide for belt conveyors and roller conveyors.
Felt plates have the property of absorbing or dispensing oil and other liquids via the capillary effect. This property can be used to remove, for example, excess oil on a belt conveyor.
In addition, MISUMI offers rubber plates and foam plates that are self-adhesive for simplified assembly. Furthermore, you will find double-adhesive tape for attaching rubber plates and foam plates.
Additional properties on foam panels and rubber plates can be found in the Properties PDF.
MISUMI also offers these products in a round shape as discs and sleeves made of rubber, natural rubber, foam and felt.
Application Examples - Panels (polyurethane rubber, rubber, foam, felt)
Application example
(1) Low-friction rubber plate (2) belt conveyor
Application example
(1) Vibration damping plate
