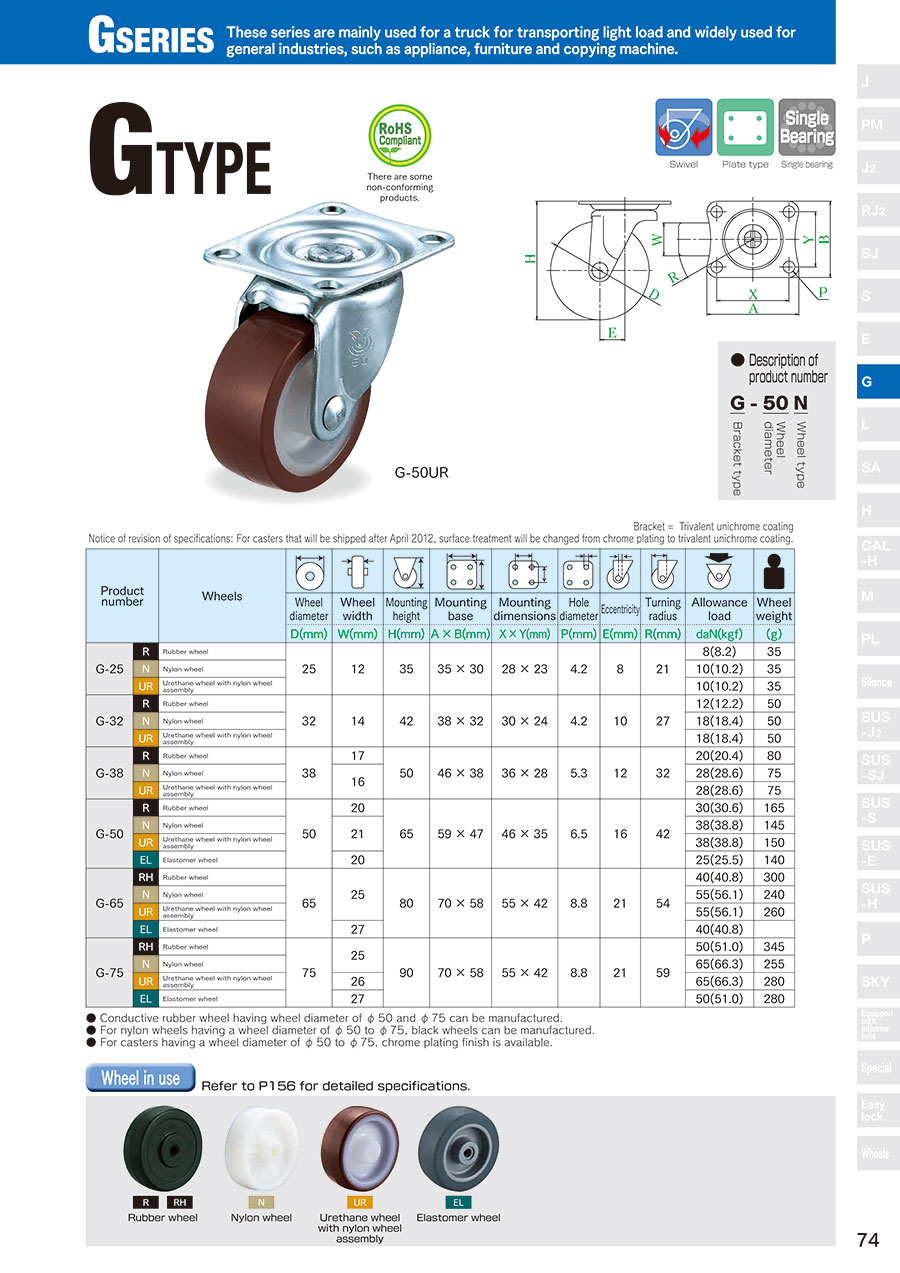

G model swivel wheel (single bearing) plate type caster outline drawing

Part Number		Wheel	Wheel Diameter	Wheel Width	Mounting Height H	Mounting Seat	Mounting Dimension	Hole Diameter	Eccentricity	Turning Radius	Allowable Load	Dead Weight
Part Number		Wheel	D (mm)	W (mm)	H (mm)	A × B (mm)	X × Y (mm)	P (mm)	E (mm)	R (mm)	daN (kgf)	(g)
G-25	R	Rubber wheels	25	12	35	35 × 30	28 × 23	4.2	8	21	8 (8.2)	35
	N	Nylon wheels									10 (10.2)	35
	UR	Nylon wheel urethane tread									10 (10.2)	35
G-32	R	Rubber wheels	32	14	42	38 × 32	30 × 24	4.2	10	27	12 (12.2)	50
	N	Nylon wheels									18 (18.4)	50
	UR	Nylon wheel urethane tread									18 (18.4)	50
G-38	R	Rubber wheels	38	17	50	46 × 38	36 × 28	5.3	12	32	20 (20.4)	80
	N	Nylon wheels		16							28 (28.6)	75
	UR	Nylon wheel urethane tread		16							28 (28.6)	75
G-50	R	Rubber wheels	50	20	65	59 × 47	46 × 35	6.5	16	42	30 (30.6)	165
	N	Nylon wheels		21							38 (38.8)	145
	UR	Nylon wheel urethane tread		21							38 (38.8)	150
	EL	Elastomer wheels		20							25 (25.5)	140
G-65	RH	Rubber wheels	65	25	80	70 × 58	55 × 42	8.8	21	54	40 (40.8)	300
	N	Nylon wheels									55 (56.1)	240
	UR	Nylon wheel urethane tread									55 (56.1)	260
	EL	Elastomer wheels		27							40 (40.8)	260
G-75	RH	Rubber wheels	75	25	90	70 × 58	55 × 42	8.8	21	59	50 (51.0)	345
	N	Nylon wheels		25							65 (66.3)	255
	UR	Nylon wheel urethane tread		26							65 (66.3)	280
	EL	Elastomer wheels		27							50 (51.0)	280
