Stainless Steel Castors 320SR / 320SRP Wheel Diameter 100-150mm

Podmínky filtrování

Mounting Height H or H1 and H2(mm)
- 132
- 168
- 190
Load Range(daN)
- 80.01~140.00
- 140.01~220.00
Allowable Load 1 piece(daN)
- 100
- 120
- 130
- 140
- 150
- 160
Wheel Material
Rubber
Nylon
MC Nylon
Nylon
Urethane
Phenol
Wheel Characteristics
Mounting Hole Pitch Longitudinal direction (X)(mm)
Mounting Hole Pitch Transverse Direction (Y)(mm)
Mounting Seat A (Plate Length)(mm)
- 90
- 102
- 110
- 140
Mounting Seat B (Plate Width)(mm)
- 78
- 90
- 94
- 102
Wheel Dia. D(mm)
- 100
- 125
- 150
Car width(mm)
- 29
- 32
- 33
- 35
- 38
- 40
- 42
- 43
Part Number
- SR
- SRP
Variety of Vehicles
- MCB
- N
- NRB
- PH
- RBU
- RU
- UB
Type
- 320SR
- 320SRP
Odhadované dodací dny
- Vše
- V rámci 6 pracovních dnů
- V rámci 10 pracovních dnů
- V rámci 11 pracovních dnů
- V rámci 14 pracovních dnů
- V rámci 15 pracovních dnů

TAKIGEN(HAMMER CASTER)

Stainless Steel Castors 320SR / 320SRP Wheel Diameter 100-150mm

Katalog

Číslo dílu:

Nebyly nalezeny žádné nevyřízené. 41 návrhy.

Seznam čísel dílů
Podrobné údaje
Katalog

Seznam čísel dílů

Počet položek

Číslo dílu

Mounting Height H or H1 and H2

(mm)

Load Range

(daN)

Allowable Load 1 piece

(daN)

Wheel Material

Wheel Characteristics

Mounting Hole Pitch Longitudinal direction (X)

(mm)

Mounting Hole Pitch Transverse Direction (Y)

(mm)

Mounting Seat A (Plate Length)

(mm)

Mounting Seat B (Plate Width)

(mm)

Wheel Dia. D

(mm)

Car width

(mm)

Part Number

Variety of Vehicles

Wheel configuration

Minimální objednací množství

132	80.01~140.00	120	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	80(90)	45(50)	110	78	100	33	SR	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
168	140.01~220.00	150	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	100(112)	56(53)	140	94	125	43	SR	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
190	140.01~220.00	160	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	100(112)	56(53)	140	94	150	43	SR	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
132	80.01~140.00	120	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	80(90)	45(50)	110	78	100	32	SR	N	Nylon Integral Wheel with Resin Bushing	1 kusů
168	140.01~220.00	150	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	100(112)	56(53)	140	94	125	35	SR	N	Nylon Integral Wheel with Resin Bushing	1 kusů
190	140.01~220.00	160	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	100(112)	56(53)	140	94	150	35	SR	N	Nylon Integral Wheel with Resin Bushing	1 kusů
132	80.01~140.00	120	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	80(90)	45(50)	110	78	100	29	SR	NRB	Nylon Integral Wheel with Roller Bearings	1 kusů
168	140.01~220.00	150	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	100(112)	56(53)	140	94	125	35	SR	NRB	Nylon Integral Wheel with Roller Bearings	1 kusů
190	140.01~220.00	160	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	100(112)	56(53)	140	94	150	35	SR	NRB	Nylon Integral Wheel with Roller Bearings	1 kusů
132	80.01~140.00	120	Phenol	Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	80(90)	45(50)	110	78	100	32	SR	PH	Phenol Integrated Wheel Resin Bushings Built-In	1 kusů
168	140.01~220.00	150	Phenol	Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	100(112)	56(53)	140	94	125	38	SR	PH	Phenol Integrated Wheel Resin Bushings Built-In	1 kusů
190	140.01~220.00	160	Phenol	Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	100(112)	56(53)	140	94	150	42	SR	PH	Phenol Integrated Wheel Resin Bushings Built-In	1 kusů
132	80.01~140.00	120	Rubber	-	80(90)	45(50)	110	78	100	32	SR	RBU	Nylon-Wheel Rubber Winding Wheel with Roller Bearings	1 kusů
168	140.01~220.00	150	Rubber	-	100(112)	56(53)	140	94	125	38	SR	RBU	Nylon-Wheel Rubber Winding Wheel with Roller Bearings	1 kusů
190	140.01~220.00	160	Rubber	-	100(112)	56(53)	140	94	150	40	SR	RBU	Nylon-Wheel Rubber Winding Wheel with Roller Bearings	1 kusů
132	80.01~140.00	120	Rubber	-	80(90)	45(50)	110	78	100	32	SR	RU	Nylon-Wheel Rubber Winding Wheel with Resin Bushing	1 kusů
190	140.01~220.00	160	Rubber	-	100(112)	56(53)	140	94	150	40	SR	RU	Nylon-Wheel Rubber Winding Wheel with Resin Bushing	1 kusů
132	80.01~140.00	100	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	80(90)	45(50)	110	78	100	32	SR	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Roller Bearings	1 kusů
168	80.01~140.00	130	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	100(112)	56(53)	140	94	125	38	SR	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Roller Bearings	1 kusů
190	80.01~140.00	140	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	100(112)	56(53)	140	94	150	38	SR	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Roller Bearings	1 kusů
132	80.01~140.00	120	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	68(71)	68(71)	90	90	100	33	SRP	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
168	140.01~220.00	150	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	125	43	SRP	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
190	140.01~220.00	160	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	150	43	SRP	MCB	MC Nylon Integral Wheel With Radial Ball Bearing	1 kusů
132	80.01~140.00	120	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	68(71)	68(71)	90	90	100	32	SRP	N	Nylon Integral Wheel with Resin Bushing	1 kusů
168	140.01~220.00	150	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	125	35	SRP	N	Nylon Integral Wheel with Resin Bushing	1 kusů
190	140.01~220.00	160	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	150	35	SRP	N	Nylon Integral Wheel with Resin Bushing	1 kusů
132	80.01~140.00	120	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	68(71)	68(71)	90	90	100	29	SRP	NRB	Nylon Integral Wheel with Roller Bearings	1 kusů
168	140.01~220.00	150	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	125	35	SRP	NRB	Nylon Integral Wheel with Roller Bearings	1 kusů
190	140.01~220.00	160	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	150	35	SRP	NRB	Nylon Integral Wheel with Roller Bearings	1 kusů
132	80.01~140.00	120	Phenol	Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	68(71)	68(71)	90	90	100	32	SRP	PH	Phenol Integrated Wheel Resin Bushings Built-In	1 kusů
168	140.01~220.00	150	Phenol	Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	125	38	SRP	PH	Phenol Integrated Wheel Resin Bushings Built-In	1 kusů
190	140.01~220.00	160	Phenol	Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)	75(80)	75(80)	102	102	150	42	SRP	PH	Phenol Integrated Wheel Resin Bushings Built-In	1 kusů
132	80.01~140.00	120	Rubber	-	68(71)	68(71)	90	90	100	32	SRP	RBU	Nylon-Wheel Rubber Winding Wheel with Roller Bearings	1 kusů
168	140.01~220.00	150	Rubber	-	75(80)	75(80)	102	102	125	38	SRP	RBU	Nylon-Wheel Rubber Winding Wheel with Roller Bearings	1 kusů
190	140.01~220.00	160	Rubber	-	75(80)	75(80)	102	102	150	40	SRP	RBU	Nylon-Wheel Rubber Winding Wheel with Roller Bearings	1 kusů
132	80.01~140.00	120	Rubber	-	68(71)	68(71)	90	90	100	32	SRP	RU	Nylon-Wheel Rubber Winding Wheel with Resin Bushing	1 kusů
168	140.01~220.00	150	Rubber	-	75(80)	75(80)	102	102	125	38	SRP	RU	Nylon-Wheel Rubber Winding Wheel with Resin Bushing	1 kusů
190	140.01~220.00	160	Rubber	-	75(80)	75(80)	102	102	150	40	SRP	RU	Nylon-Wheel Rubber Winding Wheel with Resin Bushing	1 kusů
132	80.01~140.00	100	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	68(71)	68(71)	90	90	100	32	SRP	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Roller Bearings	1 kusů
168	80.01~140.00	130	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	75(80)	75(80)	102	102	125	38	SRP	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Roller Bearings	1 kusů
190	80.01~140.00	140	Urethane	Abrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)	75(80)	75(80)	102	102	150	38	SRP	UB	Nylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Roller Bearings	1 kusů

Jednotková cena (bez DPH)(Jednotková cena včetně DPH)	Standardní datum odeslání

100.23 € ( 119.27 € )	11 pracovních dnů
106.90 € ( 127.21 € )	11 pracovních dnů
114.34 € ( 136.06 € )	11 pracovních dnů
51.76 € ( 61.59 € )	6 pracovních dnů
86.15 € ( 102.52 € )	6 pracovních dnů
94.30 € ( 112.22 € )	10 pracovních dnů
53.64 € ( 63.83 € )	11 pracovních dnů
77.84 € ( 92.63 € )	11 pracovních dnů
86.94 € ( 103.46 € )	11 pracovních dnů
67.96 € ( 80.87 € )	15 pracovních dnů
116.25 € ( 138.34 € )	15 pracovních dnů
143.68 € ( 170.98 € )	15 pracovních dnů
58.06 € ( 69.09 € )	6 pracovních dnů
80.47 € ( 95.76 € )	11 pracovních dnů
100.03 € ( 119.04 € )	11 pracovních dnů
51.98 € ( 61.86 € )	10 pracovních dnů
93.84 € ( 111.67 € )	10 pracovních dnů
68.32 € ( 81.30 € )	6 pracovních dnů
99.70 € ( 118.64 € )	10 pracovních dnů
115.62 € ( 137.59 € )	6 pracovních dnů
85.29 € ( 101.50 € )	14 pracovních dnů
134.06 € ( 159.53 € )	14 pracovních dnů
148.21 € ( 176.37 € )	14 pracovních dnů
65.61 € ( 78.08 € )	14 pracovních dnů
82.81 € ( 98.54 € )	14 pracovních dnů
85.11 € ( 101.28 € )	14 pracovních dnů
75.71 € ( 90.09 € )	14 pracovních dnů
86.84 € ( 103.34 € )	14 pracovních dnů
94.91 € ( 112.94 € )	14 pracovních dnů
84.58 € ( 100.65 € )	14 pracovních dnů
88.94 € ( 105.84 € )	14 pracovních dnů
118.66 € ( 141.21 € )	14 pracovních dnů
80.75 € ( 96.09 € )	14 pracovních dnů
86.03 € ( 102.38 € )	14 pracovních dnů
93.65 € ( 111.44 € )	14 pracovních dnů
69.86 € ( 83.13 € )	14 pracovních dnů
110.02 € ( 130.92 € )	14 pracovních dnů
91.73 € ( 109.16 € )	11 pracovních dnů
83.21 € ( 99.02 € )	14 pracovních dnů
93.02 € ( 110.69 € )	14 pracovních dnů
104.67 € ( 124.56 € )	14 pracovních dnů

Podrobné údaje

Základní informace

Základní informace

[Features]
· An all-stainless steel caster with excellent corrosion resistance and water resistance.
· Ideal for carts, equipment, etc., that are used in environments where rust and corrosion are unacceptable, such as food factories, shops, offices, etc.
· An all-stainless steel construction with excellent corrosion resistance and water resistance.
· 320SRP has the same mounting dimensions as the 320S/315S/313S swivel type casters.

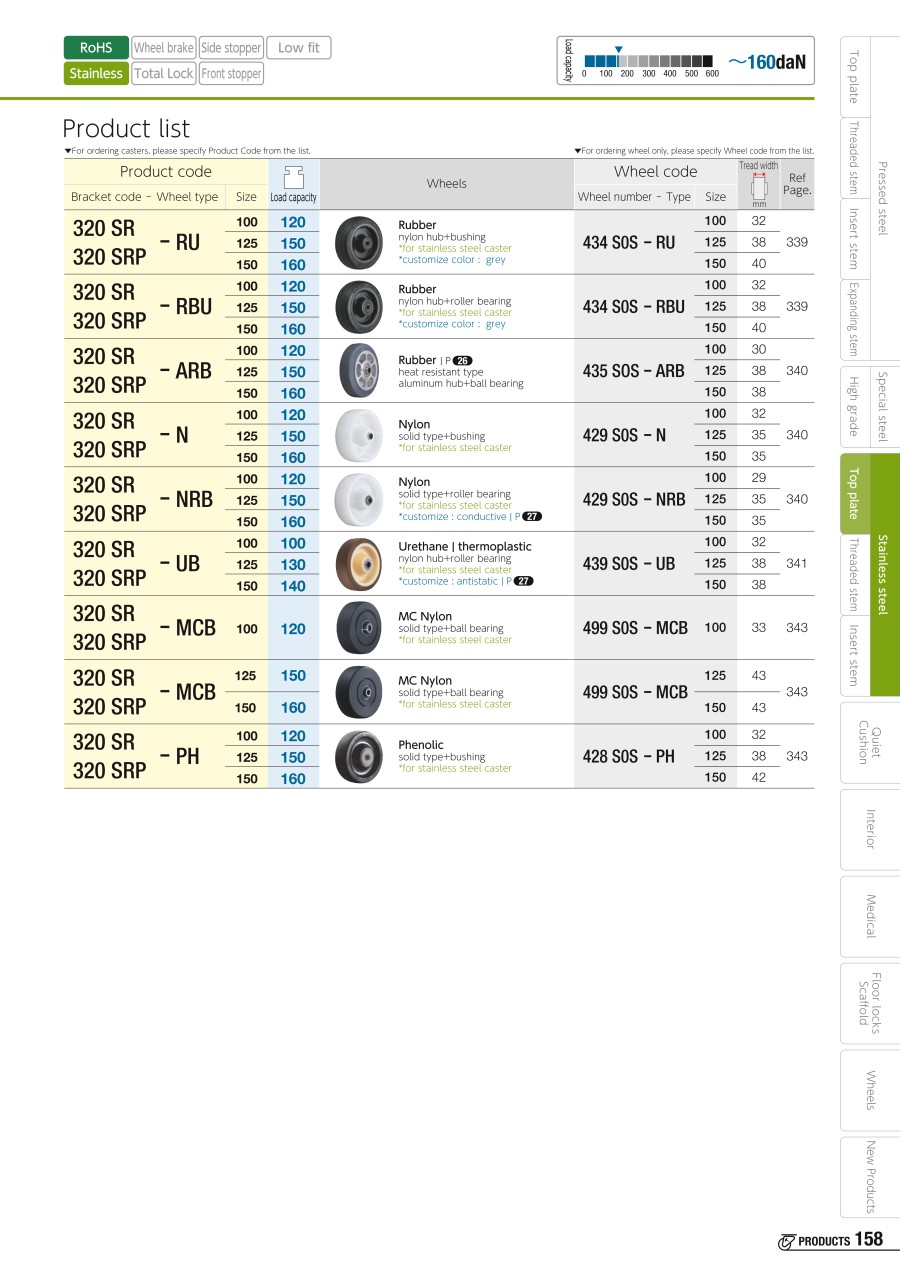

Katalog
